Product Description:
The laser glass drilling machine is designed with an advanced pattern generation system that includes EZcad + 2D Drawing / 2.5D Galvo Scanner. This system ensures that the drilling process is highly accurate and precise, delivering perfect results every time. The machine is also designed with a chipping capacity of ≤200μm, ensuring that the drilling process is clean and precise, with minimal damage to the glass surface.

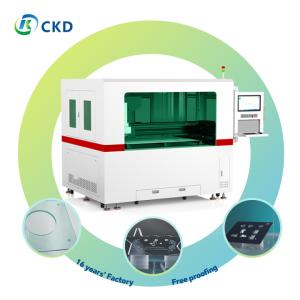

The Infrared MOPA Laser Glass Drilling Machine is an advanced piece of equipment that is designed to deliver precise and accurate drilling of holes in glass surfaces. The machine is equipped with an advanced motion platform and optical glass that enables it to deliver precise drilling of holes in glass surfaces up to a thickness of 20mm.
This automatic drilling machine laser is ideal for use in various industries that require precision drilling of holes in glass surfaces, including the automotive, aerospace, and electronics industries. The machine is designed to deliver perfect results every time, ensuring that the drilling process is highly accurate and precise.
If you are looking for an advanced glass hole drilling machine that is designed to deliver precision drilling of holes in glass surfaces, then the Infrared MOPA Laser Glass Drilling Machine is the perfect choice. This laser glass drilling machine is designed with advanced features that ensure that the drilling process is highly accurate and precise, delivering perfect results every time.
Features:
- Product Name: Laser Drilling Machine
- Model: CKD-EC1390-LDM120/ CKD-EC1390-LDM180
- Equipment Name: Infrared MOPA Laser Glass Drilling Machine
- File Formats: Various Image File Formats Such As .plt, .dxf, .dwg
- Floor Load Capacity: >500Kg/m²
- Focusing Depth: 250~450um
- Keywords: laser drilling machine for glass, horizontal glass drilling machine, yag laser drilling machine
Technical Parameters:
| Model |
CKD-EC1390-LDM120/ CKD-EC1390-LDM180 |
| Drilling Diameter |
<100mm |
| Pulse Width |
6-100ns |
| Processing Range |
600x700mm, 800x1000mm |
| Laser Wavelength |
1064nm |
| File Formats |
Various Image File Formats Such As .plt, .dxf, .dwg |
| Floor Load Capacity |
>500Kg/m² |
| Red Light Indication / Field of View |
Coaxial Red Light / Field Lens |
| Power Supply |
AC220V ±5%, L+N+E, <3KW |
| Cutting Thickness |
<20mm |
Applications:
The CKD-EC1390-LDM120 and CKD-EC1390-LDM180 laser drilling machines have a motion system that includes a motion platform and optical glass. These machines are ideal for drilling holes with a diameter of less than 100mm and a focusing depth of 250~450um. The floor load capacity of these machines is more than 500Kg/m², making them suitable for use in various industries.
The CKD-EC1390-LDM120 and CKD-EC1390-LDM180 laser drilling machines have a repetition frequency of 1-4000KHz, making them highly efficient and precise. These machines are perfect for use in scenarios such as the production of electronic components, precision instruments, glass art, and more. Whether you need to drill holes in glass for decorative purposes or to create electronic components, these machines are the perfect solution.
If you're looking for a high-quality glass hole drilling machine, the CKD-EC1390-LDM120 and CKD-EC1390-LDM180 laser drilling machines are an excellent choice. These machines use YAG laser technology, making them highly efficient and precise. They are perfect for use in various industrial applications, including glass art, electronics production, and more. Contact CKD today to learn more about these top-of-the-line laser drilling machines.
