Product Description:
The Laser Drilling Machine comes with a coaxial red light and field lens, which provides a clear indication of the processing range. The processing range of the machine is available in two different sizes, 600x700mm and 800x1000mm, making it an excellent choice for those who require a large working area.

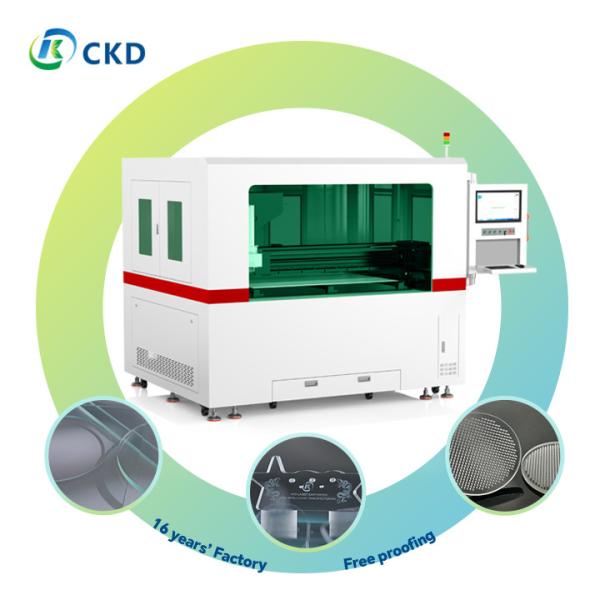

The CKD-EC1390-LDM120 and CKD-EC1390-LDM180 are two models of the Laser Drilling Machine that are currently available. Both models are portable and easy to use, making them ideal for use in a variety of settings. The machines are designed to be user-friendly and come with a range of features that make them suitable for both beginners and experienced users.
The Laser Drilling Machine is an ideal tool for those who require precision drilling of glass or other materials. With its high focusing depth and compatibility with various image file formats, the machine is incredibly versatile and efficient. The red light indication and field lens provide a clear indication of the processing range, making it easy to use and produce high-quality results.
In summary, the Laser Drilling Machine is a portable glass drilling machine that is ideal for use in a range of settings. With its high processing range, focusing depth, and compatibility with various image file formats, the machine is incredibly versatile and efficient. The CKD-EC1390-LDM120 and CKD-EC1390-LDM180 models are both user-friendly and easy to use, making them an excellent choice for beginners and experienced users alike.
Features:
- Product Name: Laser Drilling Machine
- Power Supply: AC220V ±5%, L+N+E, <3KW
- Equipment Name: Infrared MOPA Laser Glass Drilling Machine
- Repetition Frequency: 1-4000KHz
- Pattern Generation: Includes EZcad + 2D Drawing / 2.5D Galvo Scanner
- Equipment Weight: <1500Kg
Keywords: laser drilling machine, portable glass drilling machine, laser micro drilling machine
Technical Parameters:
| Positioning Accuracy |
±0.02mm |
| Initial Laser Source |
MOPA Pulse Laser |
| Pulse Width |
6-100ns |
| Floor Load Capacity |
>500Kg/m² |
| Repetition Frequency |
1-4000KHz |
| Focusing Spot |
<30 Times |
| Laser Wavelength |
1064nm |
| Chipping |
≤200μm |
| Pattern Generation |
Includes EZcad + 2D Drawing / 2.5D Galvo Scanner |
| Equipment Name |
Infrared MOPA Laser Glass Drilling Machine |
Applications:
Our laser drilling machines are ideal for a variety of applications, including automatic drilling and laser glass drilling. With a focusing spot of less than 30 times, our machines can achieve precise drilling with chipping of less than 200μm and a drilling diameter of less than 100mm.
Our machines also feature water cooling to prevent overheating during extended use. Pattern generation is made simple with EZcad + 2D Drawing or 2.5D Galvo Scanner included with the machine.
We offer flexible payment terms, including L/C and T/T, and can negotiate pricing to fit your budget. Each machine is carefully packaged in a wooden box for safe transportation and delivery time is typically between 15-45 days.
Contact us today to learn more about our laser drilling machines and how they can benefit your business. With a supply ability of 50 sets per month, we're ready to help you take your drilling operations to the next level!
